Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance
Installation method: SMT Surface Mount (SMD) Reflow Soldering or Placement by Insertion Machine and Fixation by Wave Soldering
Contact Resistance: 30 milliohms Max.
Rated Current: 2A~10A (Continuous Current)
Rated Voltage: 36V AC/DC
Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)
Operating Temperature: -40°C to +120°C (Continuous Temperature)
Salt Spray Resistance 96 Hours Corrosion Test
High-Precision Mold And Parts Processing
A variety of standards are available, and samples will be sent out as soon as the same day.
Provide Customized Services
Comply With EU RoHS And Reach Standards
Product Details

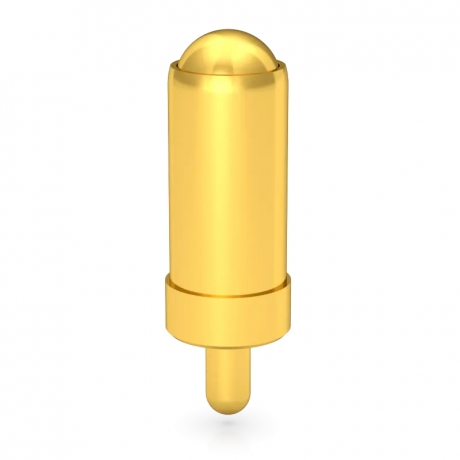

Rtench Rolling Ball Pogo Pins, also known as pogo pins or Pogo Pin connectors, or Rolling Ball spring-loaded Pins, their core function is to conduct electricity or signal transmission.
The internal design of Rolling Pogo Pin adopts a bevel structure and a built-in spring mechanism. It is mainly composed of four core components: Rolling Ball, Solid Pin, Spring and Body, and is assembled through precision molds and special equipment. The design purpose of the inclined plane structure is to ensure that when the Pogo Pins are working, the lateral force generated by the contact between the inclined plane and the spring is used to push the Rolling Ball to maintain a stable contact force with the inner wall of the Body, so that the current path mainly passes through the gold-plated rolling ball and Body. In order to obtain stable and extremely low contact resistance, a stable and reliable connection can be maintained even under frequent plugging and unplugging.
l of the needle tube. This stable contact force ensures extremely low and stable contact resistance, resulting in a stable and reliable connection.
rolling pogo pin roadway
Electroplated Gold-Golden Yellow
Electroplated Nickel—Silver White
Before Electroplating - Brass Color
Vacuum blind hole plating technology is known for its excellent performance and can accurately plate a layer of gold inside and outside extremely fine blind holes. This advanced electroplating process not only ensures the overall beauty of the metal surface, but also provides excellent corrosion and wear resistance. Every detail, whether inside or outside the hole, shows a golden and shiny color, and there will be no peeling or gold falling off problems. The precision and stability of this technology ensure the durability and durability of the electroplated layer, meeting a variety of demanding application requirements.
rolling pogo pin sample
With mature design, high-precision processing and advanced vacuum blind hole plating technology, we achieve extremely low and stable contact resistance.
